High-precision rotary motion

Reduce the vibration and noise caused by the load changes and cutting force changes。

Reduce the impact and noise caused by the forward and reverse rotation.

Reduce the aggravated wear of the worm gear caused by the above situation.

Increase the response speed of the worm gear output.
Precision Indexing Device

CNC machine tools, assembly lines, cutting machines, conveyor lines, etc.

Occasions that require accurate movement, such as indexing devices and reading devices
Speed changes

Reduce the impact and noise caused by the speed changes.

Reduce the aggravated wear of the worm gear caused by speed changes.

The JDLB series precision dual lead worm gear reducer has six sizes: 45, 50, 55, 63, 75, 90. The left and right tooth flanks of the worm have different lead angles resulting in a gradual change in the thickness of the teeth so that the adjustment of the meshing gap is possible by moving the worm

-The worm gear backlash can be adjusted to less than 1 arc minute

-The meshing gap can be readjusted after the reducer is used

-The shaft coupling is used for the input: reliable and no backlash

-The tapered clamping ring coupling is used for output: reliable and backlash-free

Servo worm gear units have six types 45 - 50 - 55 - 63 - 75 — 90 ,with dual lead womi drive Left and nght flank of worm shaft using different lead angle causing tooth thickness gradual changeSo that you can move worm shaft and adjust backlash。

-Worm gear gyration backlash can be adjusted to less than 1 arc。

-Reducer can be re-adjusted the gap after using。

-Inpul with coupling reliable without backlash。

-Output using conical clamping nng couplings: reliable without backlash。

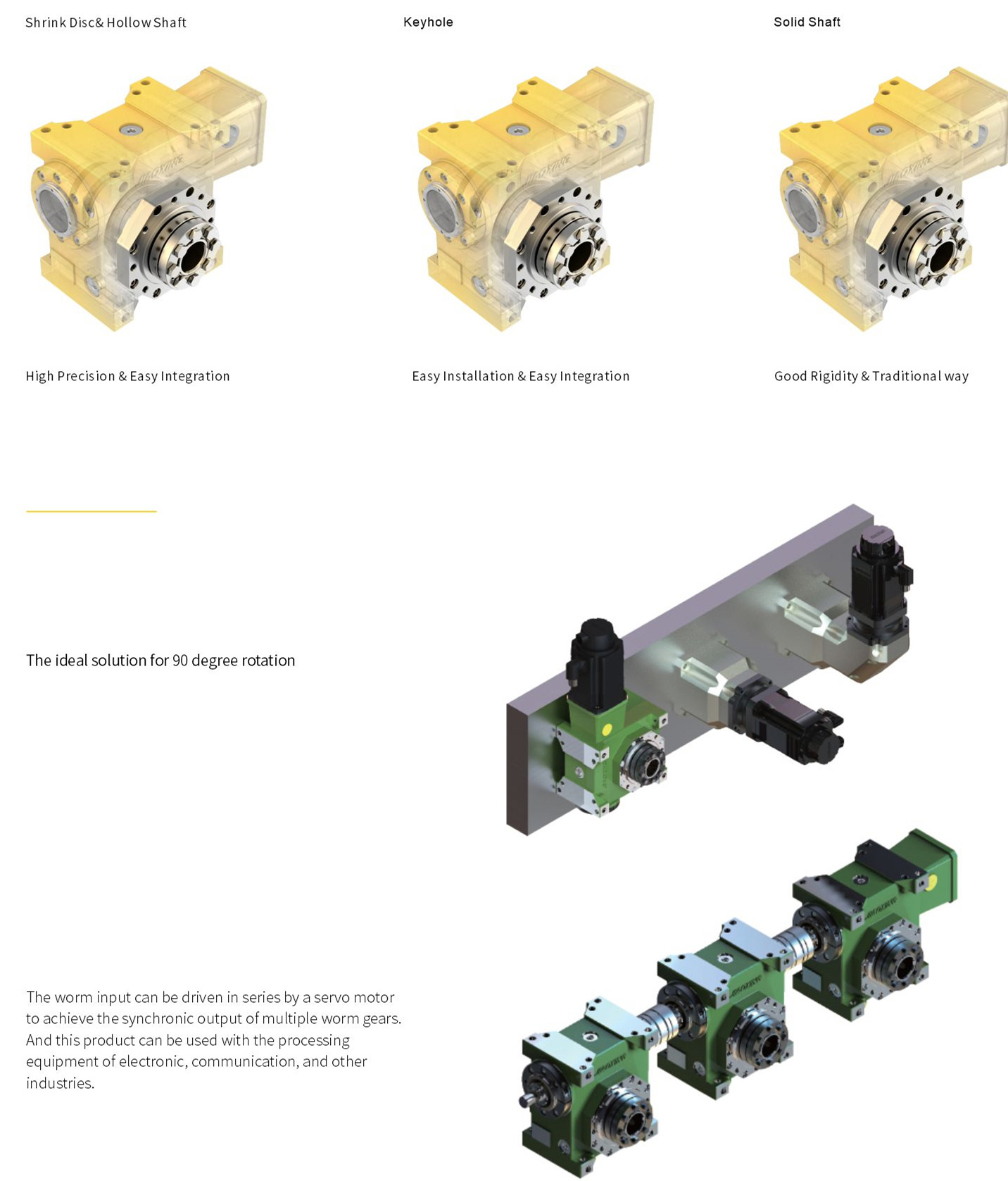

The JDLB reducer is an ideal substitute for the precision planetary reducer,

so equipment manufacturers can drastically reduce the application cost of using the precision planetary reducer.

Because the JDLB reducer is an ideal substitute for the precision planetary reducer,

equipment manufacturers can drastically reduce the application cost of using the precision planetary reducer.

The following information contains the principles of selecting reducers and the correct way to use them. For the specific value, please refer to the corresponding chapter

JDLB Series: Precision Dual Lead Worm Gear Reducer

Because the JDLB precision dual lead worm gear reducer is an ideal substitute for the precision planetary reducer,

JDLB Series: Precision Dual Lead Worm Gear Reducer

Backlash can reach 1 arc minute

The JDLB reducer is an ideal substitute for the precision planetary reducer,

so equipment manufacturers can drastically reduce the application cost of using the precision planetary reducer.

High-precision rotary motion

Reduce the vibration and noise caused by the load changes and cutting force changes。

Reduce the impact and noise caused by the forward and reverse rotation.

Reduce the aggravated wear of the worm gear caused by the above situation.

Increase the response speed of the worm gear output.

Precision Indexing Device

CNC machine tools, assembly lines, cutting machines, conveyor lines, etc.

Occasions that require accurate movement, such as indexing devices and reading devices

Speed changes

Reduce the impact and noise caused by the speed changes.

Reduce the aggravated wear of the worm gear caused by speed changes.

The JDLB series precision dual lead worm gear reducer has six sizes: 45, 50, 55, 63, 75, 90. The left and right tooth flanks of the worm have different lead angles resulting in a gradual change in the thickness of the teeth so that the adjustment of the meshing gap is possible by moving the worm

-The worm gear backlash can be adjusted to less than 1 arc minute

-The meshing gap can be readjusted after the reducer is used

-The shaft coupling is used for the input: reliable and no backlash

-The tapered clamping ring coupling is used for output: reliable and backlash-free

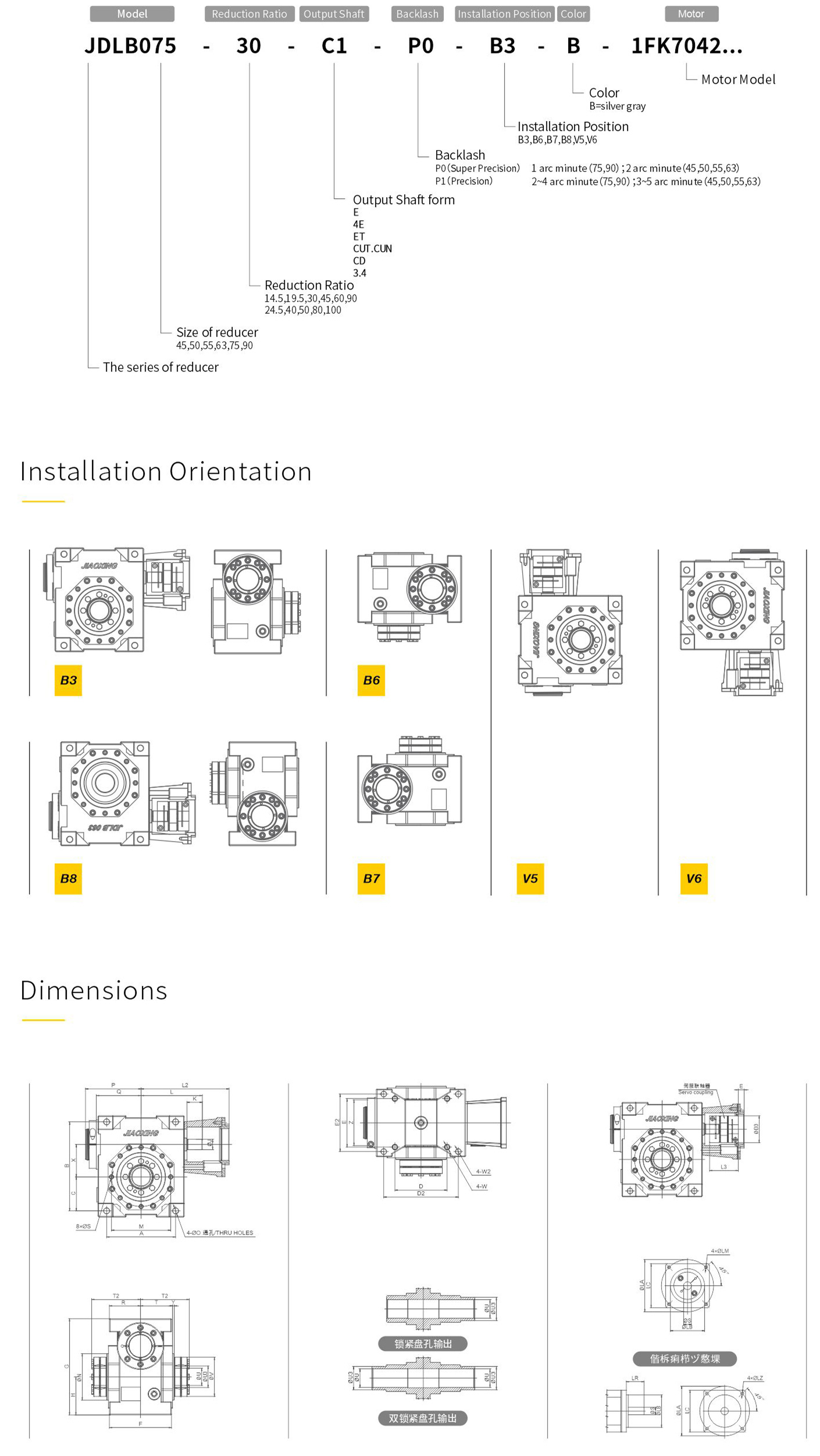

The following information contains the principles of selecting reducers and the correct way to use them. For the specific value, please refer to the corresponding chapter

Output Torque

1.1 Rated Torque

The value is obtained when the torque acts on the smoothly running reducer and the working coefficient (fs) is equal to 1.

1.2 Actual Torque

Based on the actual needs, this value may be equal to or less than the rated torque (Mn2) of the reducer.

1.3 Torque Calculation

The Calculation of the formula below requires the actual torque(Mr2) and the working coefficient(fs). It is useful when selecting the reducer model.

Power

2.1 Rated Input Power

The power (kW) of the reducer in safe operation is listed in the parameter table. They are obtained when the speed is equal to n1, and the working coefficient (fs) is equal to 1.

2.2 Rated Output Power

The formula below can be used to calculate the output power of the reducer

Working Coefficient

3.1 Rated Torque

The working coefficient (fs) of the reducer mainly depends on its operating conditions. The following factors are significant to find the most suitable combination of the working environment coefficient

1.Load Classification:A-B-C

2. Running times: hours/day)

3.Boot frequency: times/hour

A:Balanced load

B:Moderate shock load

C:Heavy-duty load

f_a=J_e/J_m

Je(kgm²): Moment of Inertia decaying on the drive shaft

Jm(kgm²): Motor Inertia

If fa>10, please contact the technical service department系

JDLB Series: Precision Dual Lead Worm Gear Reducer

Because the JDLB precision dual lead worm gear reducer is an ideal substitute for the precision planetary reducer,

JDLB Series: Precision Dual Lead Worm Gear Reducer

Backlash can reach 1 arc minute

The JDLB reducer is an ideal substitute for the precision planetary reducer,

so equipment manufacturers can drastically reduce the application cost of using the precision planetary reducer.

High-precision rotary motion

Reduce the vibration and noise caused by the load changes and cutting force changes。

Reduce the impact and noise caused by the forward and reverse rotation.

Reduce the aggravated wear of the worm gear caused by the above situation.

Increase the response speed of the worm gear output.

Precision Indexing Device

CNC machine tools, assembly lines, cutting machines, conveyor lines, etc.

Occasions that require accurate movement, such as indexing devices and reading devices

Speed changes

Reduce the impact and noise caused by the speed changes.

Reduce the aggravated wear of the worm gear caused by speed changes.

The JDLB series precision dual lead worm gear reducer has six sizes: 45, 50, 55, 63, 75, 90. The left and right tooth flanks of the worm have different lead angles resulting in a gradual change in the thickness of the teeth so that the adjustment of the meshing gap is possible by moving the worm

-The worm gear backlash can be adjusted to less than 1 arc minute -The meshing gap can be readjusted after the reducer is used -The shaft coupling is used for the input: reliable and no backlash -The tapered clamping ring coupling is used for output: reliable and backlash-free

The following information contains the principles of selecting reducers and the correct way to use them. For the specific value, please refer to the corresponding chapter

Output Torque

1.1 Rated Torque

The value is obtained when the torque acts on the smoothly running reducer and the working coefficient (fs) is equal to 1.

1.2 Actual Torque

Based on the actual needs, this value may be equal to or less than the rated torque (Mn2) of the reducer.

1.3 Torque Calculation

The Calculation of the formula below requires the actual torque(Mr2) and the working coefficient(fs). It is useful when selecting the reducer model.

Power

2.1 Rated Input Power

The power (kW) of the reducer in safe operation is listed in the parameter table. They are obtained when the speed is equal to n1, and the working coefficient (fs) is equal to 1.

2.2 Rated Output Power

The formula below can be used to calculate the output power of the reducer

Working Coefficient

3.1 Rated Torque

The working coefficient (fs) of the reducer mainly depends on its operating conditions. The following factors are significant to find the most suitable combination of the working environment coefficient

1.Load Classification:A-B-C 2. Running times: hours/day) 3.Boot frequency: times/hour A:Balanced load B:Moderate shock load C:Heavy-duty load

fa=Je/Jm Je(kgm²): Moment of Inertia decaying on the drive shaft Jm(kgm²): Motor Inertia If fa>10, please contact the technical service department系

Reduce the vibration and noise caused by the load changes and cutting force changes。

-The worm gear backlash can be adjusted to less than 1 arc minute

-The meshing gap can be readjusted after the reducer is used

-The shaft coupling is used for the input: reliable and no backlash

-The tapered clamping ring coupling is used for output: reliable and backlash-free

1.Load Classification:A-B-C

2. Running times: hours/day)

3.Boot frequency: times/hour

A:Balanced load

B:Moderate shock load

C:Heavy-duty load

f_a=J_e/J_m

Je(kgm²): Moment of Inertia decaying on the drive shaft

Jm(kgm²): Motor Inertia

If fa>10, please contact the technical service department系
